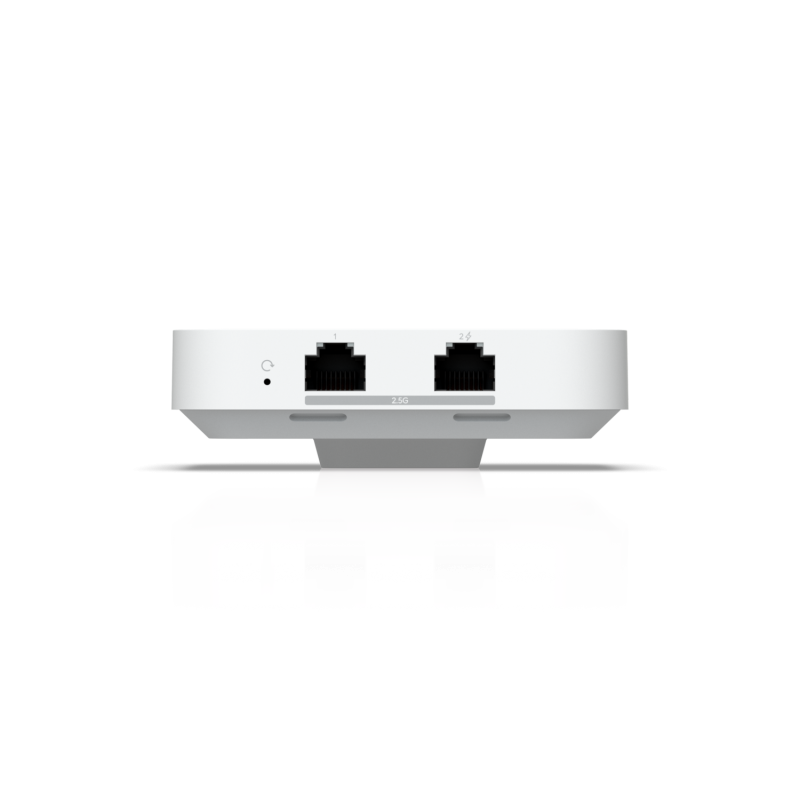

U7 In-Wall

$239.99

Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Quantity
Last items in stock



Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge



Your Payments Are Securely Processed By PayPal Using SSL Technologies.



Please note! Ship charge will display as free until ship address / location is provided to calculat

Dimensions
137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting
Wall (Metal Wall Mount Included)
Power Method
PoE PoE+ (Required for PoE output)
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
8 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Max. Power Consumption
13W (Excluding PoE output)
Supported Voltage Range
42.5—57V DC
Networking Interface
(3) 2.5 GbE RJ45 ports
Weight
400 g (14.1 oz)
Management
Ethernet
Built-In Switch
(1) PoE+ input and (1) PoE output
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Aluminum alloy
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
Certifications
CE, FCC, IC, SRRC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 9.0.114 and later
Mobile App
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
U7-IW
