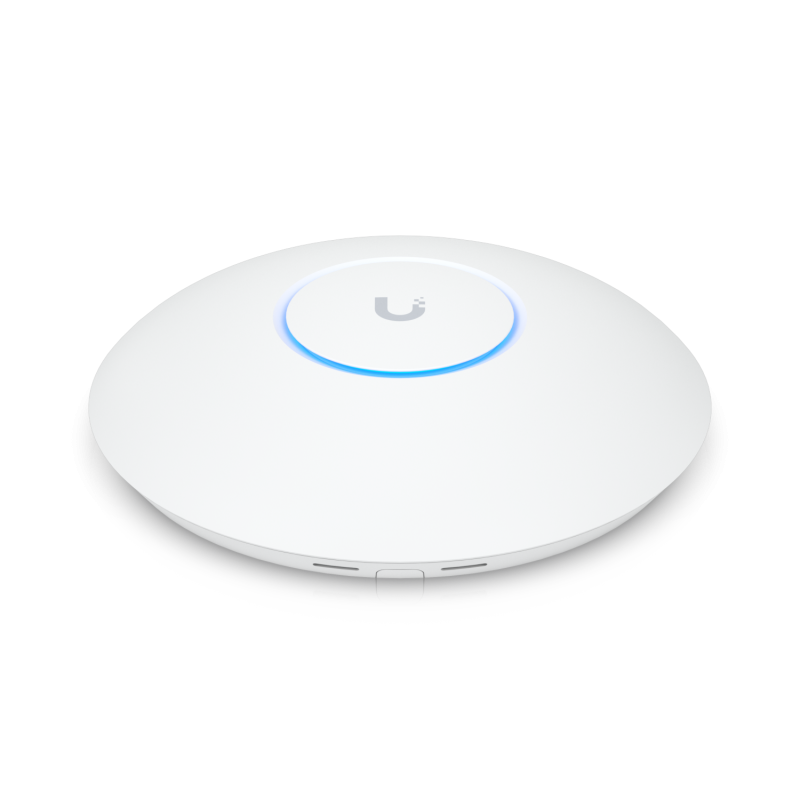

U7 Long-Range
$259.99
10Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge
Your Payments Are Securely Processed By PayPal Using SSL Technologies.
Please note! Ship charge will display as free until ship address / location is provided to calculat
Dimensions
Ø175.7 x 43 mm (Ø6.9 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
5
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Plastic Mounting Plate included)
Power Method
PoE
MIMO
5 GHz
3 x 3 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW160)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
27 dBm
2.4 GHz
26 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Max. Power Consumption
14W
—
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
448 g (15.8 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 9.1.120 and later
Mobile App
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
