StarterHorn™ 30° USMA - SINGLE
search
  • StarterHorn™ 30° USMA - SINGLE
  • StarterHorn™ 30° USMA - SINGLE
  • StarterHorn™ 30° USMA - SINGLE

StarterHorn™ 30° USMA - SINGLE

$145.99

An affordable horn sector antenna with excellent noise rejection and coverage stability.

DATASHEET

Quantity
In-Stock



Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge



Your Payments Are Securely Processed By PayPal Using SSL Technologies.



Please note! Ship charge will display as free until ship address / location is provided to calculat

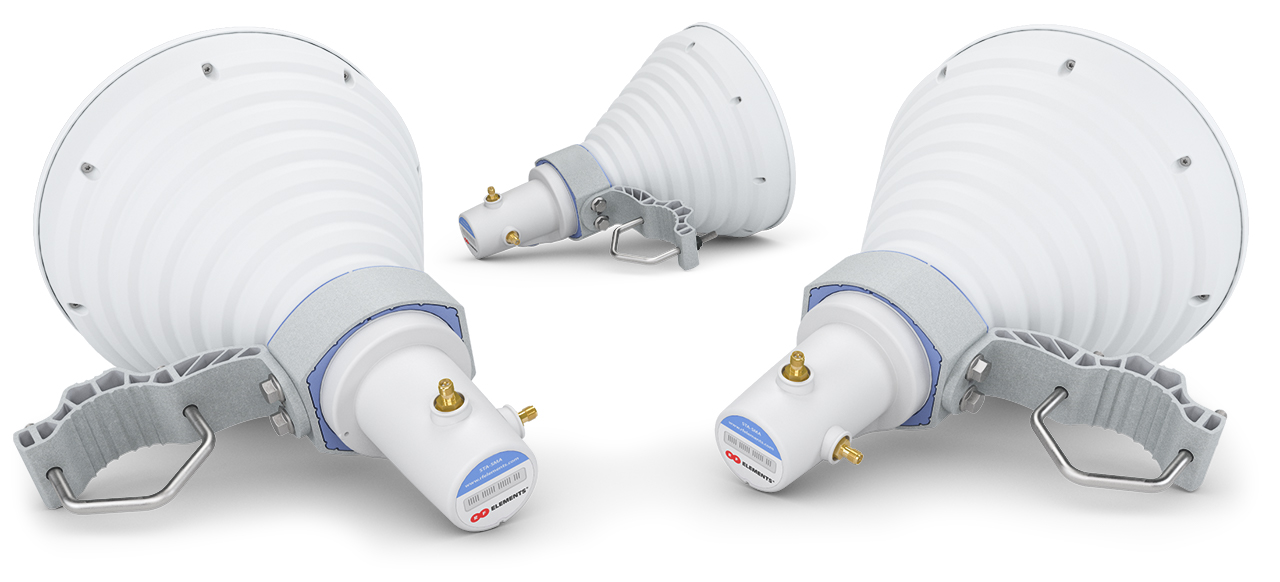

StarterHorn™ Sector Antenna

STH-30-USMA is a scalar horn antenna with a symmetrical radiation pattern and RP-SMA interface for easy connectivity. The StarterHorn™ 30 USMA is a convenient start for customers new to horn antenna technology requesting low initial investment.

Premium Beam Performance

The StarterHorn™ 30 USMA has unique radiation pattern. The main beam is symmetrical, with circular cross-section - the azimuth and elevation beam widths are both 30° at -6dB.

Excellent Noise Immunity

Noise in unlicensed 5 GHz wireless networks is caused by the side lobes of widely used traditional patch array antennas. The StarterHorn™ 30 USMA has zero side lobes, ensuring efficient use of the spectrum. As a result, your wireless network does not suffer from high interference.

High Beam Efficiency

Beam Efficiency (BE) is a side lobes measure with values from 0 to 100%. The higher the BE, the less side lobes an antenna has - StarterHorn™ 30° USMA has BE of 92 %, suppressing vast majority of interference and providing game changing throughput increase. For reference, BE of widely used patch array sector antennas rarely exceeds 58%!

Frequency Independent Beam Width and Gain

The shape of the main lobe and the gain of StarterHorn™ 30 USMA do not change with frequency. Antenna performance is super stable over a wide span of frequencies between U-NII-1 and U-NII-3 bands. This is extremely important for WISPs planning their network deployments, as they can rely on antenna performance whenever changing a channel.

Powerful Co-Location Ability

StarterHorn™ 30 USMA delivers excellent performance in dense co-location deployments. You can split poorly performing 90° sector into three 30° sectors with excellent performance using StarterHornTM 30 sector antennas and offer higher throughput packages or connect more customers.

Flexible Connectivity

The StarterHorn™ 30 USMA offers a wide range of radio connectivity options. The RP-SMA ports are suitable for any radio with coaxial output. Additional waveguide port enables connectivity to IsoStation and PrismStation - waveguide radios from Ubiquiti Networks.

Compact and Durable

The StarterHorn™ 30 USMA is built using premium materials, yet priced reasonably. Antenna is built from aluminium and therefore very light. Mount is simple and functional, with M6 nuts made of surface coated stainless steel to prevent seizing.

STH-30-USMA
